AutoCAD Clock Symbols Library - Preview Page

Available to download NOW!

Below you will find previews for all the CAD block symbols of clocks included in this AutoCAD block library of clocks.

AutoCAD Blocks of Clocks-01

Above is displayed the preview of the Longcase Floor Clock CAD symbols.

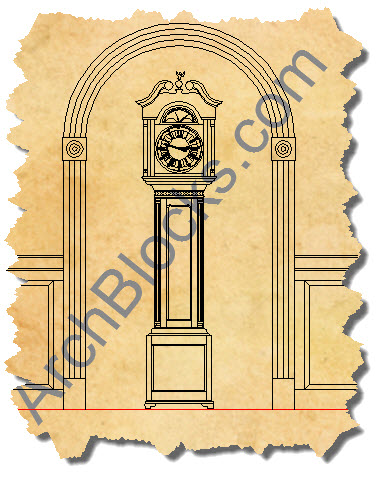

CAD symbol Grandfather Clock-01

Above - Elevation view of the CAD symbol for a Swan Neck Longcase clock.

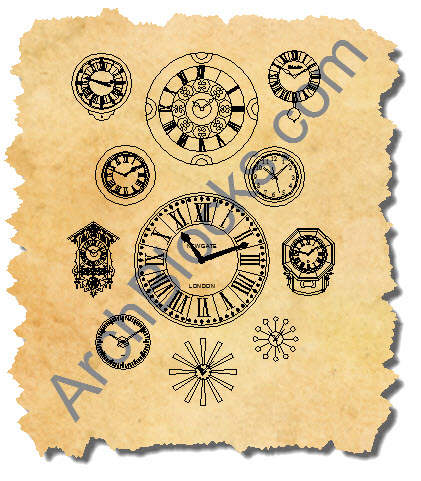

CAD blocks of wall clocks

Above - various wall clock AutoCAD symbols, also included is a CAD symbol of a Cuckoo clock!

AutoCAD Mantel Clocks Symbols-01

Above - CAD blocks of mantel clocks, balloon clocks, and Arch Dial Bracket clock in elevation and side views.

Mantel clocks AutoCAD symbols-02

AutoCAD symbols for Pediment Architectural clock, balloon clocks, and CAD blocks for a Admirals Hat clock.

CAD symbols for wall clocks-03

Above - AutoCAD drawings of Tavern clocks, Viennesse Regulator clock, and Shaker Wall clock.


Download this AutoCAD Clocks Library Now!
