AutoCAD Electrical Symbols Library Preview

The ArchBlocks AutoCAD Electrical Library has electrical symbols for designing Lighting Plans and Electrical Plans that are included in CAD construction documents. You will also find CAD Blocks for Reflected Ceiling Plans and basic Lighting Schedule to help you get started. Find the following AutoCAD blocks in this library:

Lighting and Exhaust Fans Blocks

ArchBlocks AutoCAD Lighting and Exhaust Blocks include the following:

  • Wall Sconce
  • Wall Mounted Light Fixture
  • Suspended Light Fixture
  • Surface Mounted Light Fixture
  • Exhaust Fan
  • Exhaust Fan and Light Combo

AutoCAD Electrical Symbols - Lighting and Exhaust Fans

Electrical Switches Blocks

ArchBlocks AutoCAD Switches Blocks include the following:

  • Single Switches
  • 3 Way Switches
  • Dimmer Switches
  • Timed Switches
  • Weather Proof Switches
  • Master Switches
  • Low Voltage Switches
  • Ceiling Pull Switches

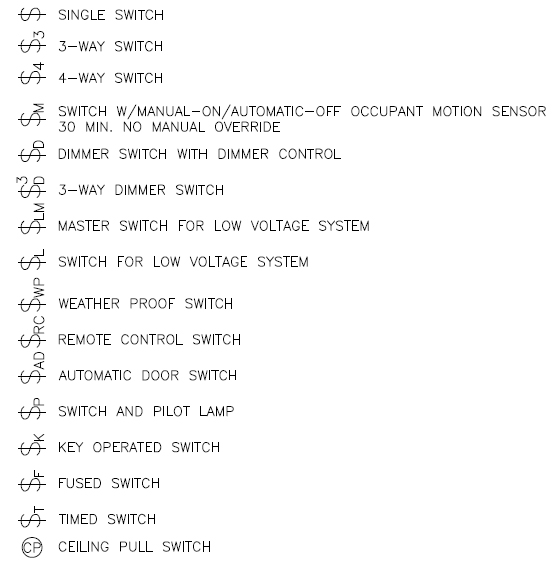

Electrical Symbols - Electrical Switches AutoCAD Symbols

Outlets Blocks

ArchBlocks AutoCAD Outlet Blocks include the following:

  • Duplex Outlet
  • Fourplex Outlet
  • 220 Outlet
  • Ground Fault Duplex Outlet
  • ARC Fault Duplex Outlet
  • Floor Mounted Duplex Outlet
  • Blanked Outlet
  • Junction Box

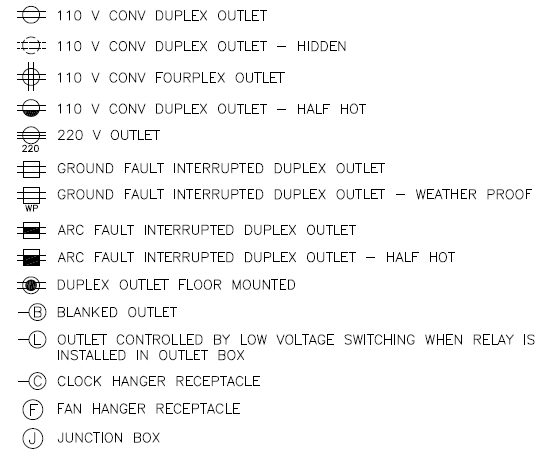

Electrical Symbols In CAD - Electrical Outlets

Climate Control Blocks

ArchBlocks AutoCAD Climate Control Blocks include the following:

  • Thermostat
  • A.C. Circuit Breaker
  • Ceiling Fan

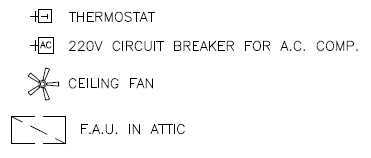

Electrical Symbols for Climate Control

General Electric Symbol Blocks

ArchBlocks AutoCAD General Electric Blocks include the following:

  • Door Chimes
  • Smoke Detector
  • Telephone Jack
  • Telephone Panel
  • Electrical Panel
  • Cable Panel
  • Television Jack
  • Security System
  • Low Voltage Transformer

General Electricl AutoCAD Symbols

Gas Blocks

ArchBlocks AutoCAD Gas Blocks include the following:

  • Fuel Gas
  • Fireplace Key/Switch

AutoCAD Electrical Symbols Gas Blocks

Water Blocks

ArchBlocks AutoCAD Water Blocks include the following:

  • Hose Bib
  • Hose Bib with Shut Off
  • Cold Water Stub for Ice Maker

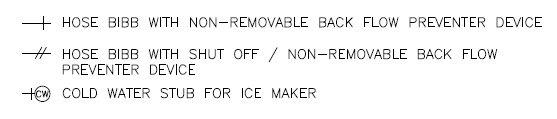

AutoCAD Electrical Symbols Water Blocks Preview

Reflected Ceiling Plan Blocks

ArchBlocks AutoCAD Reflected Ceiling Plan Blocks include the following:

  • Fluorescent Light Fixture
  • Recessed Light Fixture
  • Return Air Grill
  • Supply Air Grill

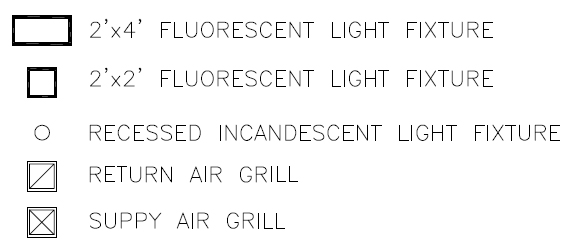

Reflected Ceiling Plan Blocks

Lighting Schedule Blocks

ArchBlocks AutoCAD Lighting Schedule Blocks include the following:

  • Lighting Schedule

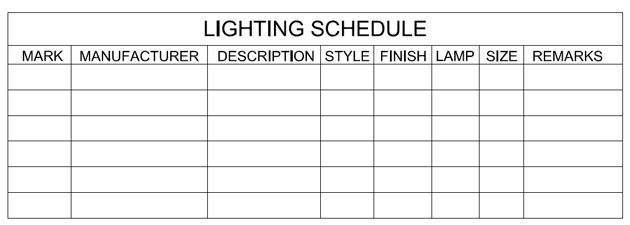

AutoCAD Electrical Symbols Lighting Schedule




Return To ArchBlocks AutoCAD Block Library Products Page

Support:
We offer free technical support for any questions that you might have about the ArchBlocks AutoCAD block libraries. Email us and we will be glad to answer any concerns you may have on the installation and use of our CAD drawing products.
