AutoCAD Electrical Symbols

This CAD Electrical Symbols Library is one of our top sellers!

Creating your own AutoCAD electrical symbols from scratch in AutoCAD is a massive waste of time! This is a great starter set of CAD electrical symbols and CAD electrical blocks that will help you work faster and save time.

Download the Electrical Symbols Library immediately to get started NOW!

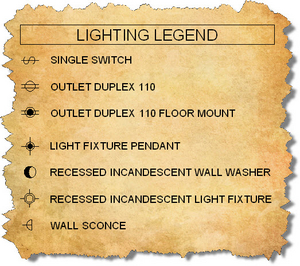

The electrical switches and electrical outlets are created 9" in length, that means when you plot at 1/4"=1'-0" the symbols will be plotted to 3/16" length on your sheet. You can easily edit these CAD blocks to any size to follow your own company CAD standards.

All products are 100% satisfaction guaranteed!
