Product Description:

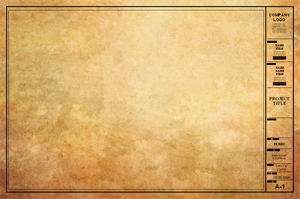

Paperspace Title Blocks

(not included in the Design Suite #1 Library)

If you are new to designing and drawing with AutoCAD software, be sure to check out our line of AutoCAD Title Block products. Our title blocks are the best way to get your CAD projects started. Don’t waste time with trying to figure out drawing startup settings, or trying to design an architectural titleblock and border, it’s all done for you! Our drawing titleblocks have all the main architectural settings already done for you, including dimension styles for all the architectural scale factors. We use the AIA CAD Layer Guidelines for industry standard layer names to start a basic layer list.

You get sheet sizes A 8.5x11, both landscape and portrait, B 11x17, C 12x18, D 24x36, E 30x42. These are set up as Paperspace layouts so you can delete whatever sheet sizes you don’t need, and you can plot to any scale factor that you need.
